ACTIVE Pumps

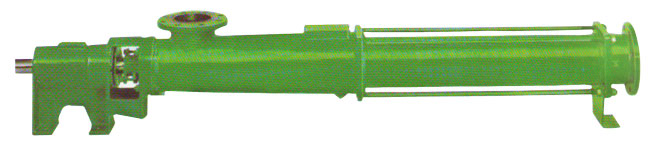

Screw Pumps
Salient Features
- Positive Displacement
- Non Pulsating Metered Flow
- Pumps Variable Solids and Abrasives
- Steady Capacity under wide Variations in NPSH
- Reversible
- Silent Running
- Adaptable
- Passes Particles
- High Suction Lift
Material of Construction
| A. Rubber Stator (Bonded to steel tube / Free Fitting) | |
| Natural (Soft / Hard) | OPERATING PARAMETERS |
| Perbunan | |
| Neoprene | CAPACITY : 120M3 / HR |
| Hyplan | PRESSURE : 24 BAR |
| Silicon | TEMP. : 1200C |
| Hycar | VISCOSITY : 1,00,000 CPS |
| Butyle | APPLICATION : |
| Viton | |
| Buna-N | USED FOR SEMI VISCOUS AND HIGHLY VISCOUS LIQUIDS |
| Nitrile | |
| B. Rotor, Shaft and Rotating Parts | |
| Alloy Steel | |
| Tool Steel (HCHC) | |
| AISI - 304 | |
| AISI - 316 | |
| AISI - 316L | 1. Without Treatment |
| Nitrited Steel (EN-41B) | 2. Hard Chrome Plated |
| Haste Alloy | 3. Special Coating |
| Special Alloy | |
| C. Housing & Wettable Parts |
| CI IS : 210 Grade 20 & Grade 25 |
| CF8 / AISI 304 |
| CF8M / AISI 316, AISI 316L |
| Alloy Steel / Alloy-20 |
| CI IS : 210 Grade 25 Ebonite / FRP Lined (Internal / External) |
