Mud Pumps

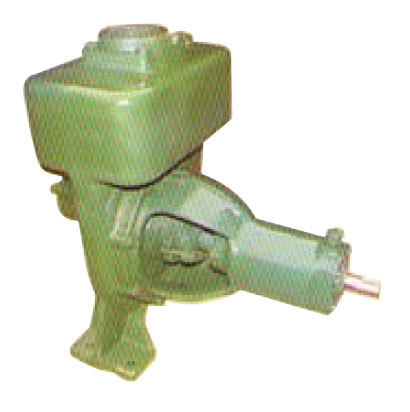

Self-Priming Non-Clog Pump
Features
- Dynamically balanced rotating parts ensure vibration free and noise less Operation.
- Good Quality Raw Materials Facilitate Longer life with hight efficiency.
- Trolley Type - Mobility.
- Suitable for engine drive at remote location where electricity is not available
Applications
- Pumping of Domestic Sewage
- Polluted Water
- Storm Water
- Effluent
- Industrial Waste Water
- Water from Marine
- Docks
- Ports and Vessels
- Dewatering from Construction Foundations
- Trenches and Pits
Material of Construction
| Pump Casing | Cast Iron |
| Impeller | Cast Iron (Optional - Bronze and SS) |
| Shaft | EN8 Steel |
| Shaft Sleeve | SS 410 |
| Sealing | Graphite Aspestos Packing Rope (Optional Mechanical Seal (Carbob & Ceramic)) |
Specifications
| Power | 0.75 kw - 40 kw (1.0HP - 60HP) |
| Frequency / Speed | 50Hz / 2880 rpm / 1440 rpm |
| Maximum Flow Rate | 178 lbs |
| Maximum Total Head | 46 meters |
| Direction of Rotation | Clockwise viewed from driving end |
| Maximum Suction Lift in Meter | 8 |
| Maximum Liquid Temperature | 330C |
| Maximum Ambient Temperature | 400C |
| Sold Handing Capacity | Up to 50mm |
Mud Pumps

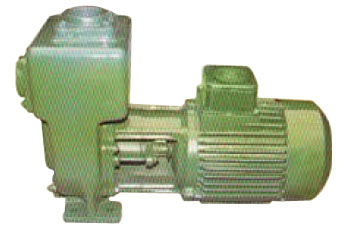

Self-Priming Non-Clog Monoblock Pumps
Features
- Quick Self-Priming
- Back Pullout Design for easy Maintenance
- Dynamically Balanced Rotating Parts
- Good Quality Raw Materials Facilitate Longer Life with High Efficiency
- Pumps Available with CI / SS / Bronze CI Impeller
Applications
- Pumping of Domestic Sewage
- Pollited Water
- Stom Water
- Effluent
- Industrial Waste Water from Marine
- Docks
- Ports and Vessels
- Dewatering from Construction Foundations
- Trenches
- Pits and Irrigation
Material of Construction
| Pump Casing | Cast Iron |
| Motor Frame | Cast Iron |
| Impeller | Cast Iron (optional - Bronze and SS) |
| Shaft | EN8 Steel |
| Shaft Sleeve | SS 410 |
| Sealing | Graphite Aspestos Packing Rope (Optional Mechanical Seal (Carbon & Ceramic)) |
Specifications
| Power | 0.75kw - 11kw (1.0HP - 15HP) |
| Frequency / Speed | 50Hz / 2880 rpm / 1440 rmp |
| Version | Single Phase 230V 50Hz, A.C. Supply Three Phase, 380 - 415V, 50Hz, A.C. Supply. |
| Maximum Flow Rate | 22 lps |
| Maximum Total head | 46 Metres |
| Degree of Protection | IP 44 |
| Class of Insulation | "B" |
| Direction of Rotation | Clockwise viewed from Driving end |
| Type of Duty | S1 (Continuous) |
| Maximum Suction lift in Meter | 8 |
| Maximum Liquid Temperature | 330C |
| Maximum Ambient Temperature | 400C |
| Solid Handing Capacity | Up to 16mm |
