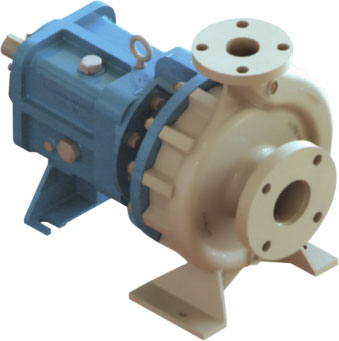

Chemical Series Pumps
Q: 1200 M3/HR., H: 200 M
Zoom

Salient Features

  • ANSI B73.1 Standard
  • High Quality
  • Heavy Duty
  • Wide Range
  • Prompt Pre & Post Sales Services
  • Customized Designs Available
  • Vertical & Horizontal Configurations

Applications

  • Non API 610 Chemical & Process Applications
  • General Refinery Services
  • Erosive / Corrosive Liquors
  • Chemical & Process Transfer
  • Demineralised Water
  • Condensates
  • Low Consistency Paper, Pulp & Stock
  • De-watering & De-inking Process Liquors
  • Water & Effluent Applications
  • Brewing & Bottling Plant Liquors
  • Distillation Plant Liquors
  • Steel Making, Mining, Effluent, and General Industrial
  • Applications

Material of Construction

Description Material of Construction
Pump Casing SS 316 SS 316 SS 304 SS 304 CS (WCB) SS 316L
Impeller (Semi – Open) SS 316 SS 316 SS 304 SS 304 CS SS 316L
Pump Shaft EN – 8 SS 316 EN – 8 SS 316 EN – 8 SS 316L
Stuffing Box & Gland SS 316 SS 316 SS 304 SS 304 CS (WCB) SS 316L
Shaft Sleeve SS 316 SS 316 SS 316 SS 316 SS 316 SS 316
Bearing Housing with covers & Connecting Frame Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron

ECC & ECCV Servies Pump Range~Maximum Performance Guide

   Pump Size           Flow Rate = m3/hour & Head = meters & Speed = rpm

Group 1 Pumps
25-150   30 / 50   3600
40-150 Maximum 60 / 50 Maximum 3600
50-150 Flow / Head = 100 / 40 Speed = 3600
25-200   40 / 90   3600
Group 2 Pumps
40-220   70 / 90   3600
50-220   120 / 90   3600
80-220   180 / 90   3600
100-220   320 / 90   3600
25-250   40 / 130   3600
40-280 Maximum 100 / 160 Maximum 3600
50-280 Flow / Head = 170 / 160 Speed = 3600
80-280   270 / 150   3600
100-280   360 / 50   1800
40-330   80 / 200   3600
50-330   150 / 200   3600
80-330   200 / 150   3600
100-330   400 / 55   1800
Group 3 Pumps
150-330   700 / 55   1800
150-380 Maximum 800 / 75 Maximum 1800
200-330 Flow / Head = 1100 / 40 Speed = 1800
200-380   1200 / 60   1800
