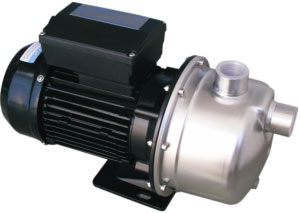

Centrifugal Monoblock Pump
Applications
- Domestic
- Irrigation
- Industrial Water System
- Shallow Wells
- Houses
- Small Farms
- Garden
- Domestic Pressure Boosting
- Car Washing
- Industries and Drinking Water Supply
Material of Construction
| Pump Casing | S.S 304 |
| Motor Frame | Aluminum |
| Impeller | S.S 304 |
| Shaft | S.S 304 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
Specifications
| Power Range | 0.75 kw, 1.5 kw & 1.85 kw. |
| Speed | 2900 rpm. |
| Degree of Protection | IP 54. |
| Class of Insultation | "B" |
| Versions | Single Phase 220V / Three Phase 380V-415V, 50Hz, AC |
| Direction of Rotation | Clock wise viewed from driving end. |
| Type of Duty | S1 |
| Nominal Suction and Delivery Sizes | 32 mm x 25 mm & 40 mm x 32 mm |
| Maximum Head | 35.5 m |
| Maximum Suction Lift | 8 m |
| Maximum Liquid Temperature | +50C ~ +600C |
| Maximum Ambient Temperature | 400C |
| Maximum Working Pressure | 3.5 bar |

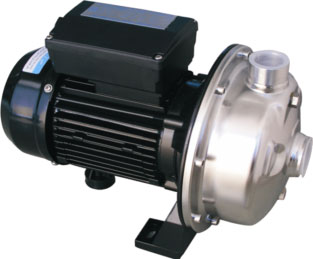

Self-Priming Jet Pumps
Applications
- Shallow Wells
- Houses
- Small Farms
- Garden
- Domestic Pressure Boosting
- Car Washing
- Industries and Drinking Water Supply
Material of Construction
| Pump Casing | S.S 304 |
| Motor Frame | Aluminum |
| Shaft | S.S 304 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
Specifications
| Power Range | 0.55 kw 0.75 kw |
| Speed | 2900 rpm. |
| Degree of Protection | IP 54. |
| Class of Insultation | "B" |
| Versions | Single Phase 220V / Three Phase 380-415V, 50Hz, AC. |
| Direction of Rotation | Clock wise viewed from driving end. |
| Type of Duty | S1 |
| Nominal Suction and Delivery Sizes | 25 mm x 25 mm |
| Maximum Head | 45 m |
| Maximum Suction Lift | 8 m |
| Maximum Liquid Temperature | +50C ~ +600C |
| Maximum Ambient Temperature | 400C |
| Maximum Working Pressure | 4.5 bar |
