B.E. Pumps Pvt. Ltd.

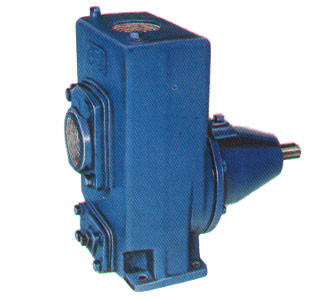

Centrifugal Self Priming Pumps
Type : "SH"
Applications
- Drainage and irrigation
- Sewage and effluent treatment plant
- Construction sites
- Transfer of oil, Petrol
- Various marine applications like General Service, Fire Fighting, Bilge etc.
Technical Data
| Capacity | Max. 75 M3/Hr. |
| Head | Max. 36 M. |
| Speed | 2900 RPM (Normal) 3600 RPM (Max.) |
| Suction Lift | Max. 8 M. |
| Temperature | Max. 600C. |
| Rotation | Clockwise when looking from drive end. |
Material
| Suction Cover Pump Casing Stuffing Box Impeller |
Close Grained Cast Iron |
| Shaft | Stainless Steel |
| Sealing | Mechanical Seal |
| Other Materials like Bronze also available on request. | |
Features
- Suitable for handling liquids containing solid particles.
- Back pull out design.
- Fitted with two ball bearings with grease packed for lilfe.
- Fitted with Mechanical seal which cannot run dry because of oil reservoir in pump.
- Prior to commissioning liquid is filled in the pump. After shut down enough liquid remains in pump to prime again.
- Priming time is minimum.
