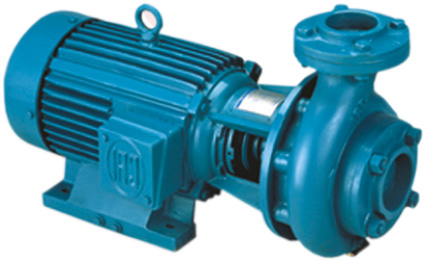

Monoblock Pumpsets (CH, CS, BP, ACM Series)
HP : UPTO 20 SIZE : 100" x 100" T : 40oC

Applications

  • Domestic
  • Irrigation
  • Agriculture
  • Farms
  • Gardens
  • Industrial
  • Civil Applications

Salient Features

  • High Operating efficiency resulting in lower power consumption
  • Good suction lift characteristics
  • Dynamically balanced rotating parts including rotor and impeller
  • Balanced and rigid construction
  • Back pull out design for easy servicing & repair
  • Single shaft ensures permanent & correct alignment
  • Inbuilt thermal over load protector in all single phase Pumpsets (1.5 kW)
  • Designed for wide voltage fluctuations
  • Bronze impeller in specific models
  • Graphite coated asbestos packing rope is used to increase bush life
  • Monoblock with extension shaft in specific models

Material of Construction

Rear Cover / Bracket Cast Iron
Motor frame Cast Iron / Aluminium
Shaft SS AISI 410
Impeller Cast Iron / SS AISI – 304
Pump Casing Cast Iron
Sealing Mechanical Seal
