Industrial Pumps « C.R.I. pumps

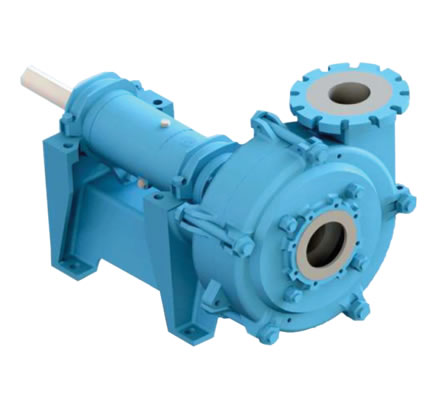

Rubber Lined Slurry & Sludge Pumps
Q: 1400 M3/HR. H: 45 M

Applications

  • Abrasive Slurries and Sludges
  • Abrasive Chemicals & Process     Liquors
  • Abrasive Fibrous Pulp & Solids
  • Effluent Treatment
  • Erosive & Corrosive Slurries
  • Sand Filter & Process Systems
  • Cyclone Feed & Underflow
  • Aggregate & Mineral Slurries
  • Tailings Disposal
  • High Density Slurries & Sludges
  • Highly Abrasive Solids in suspension
  • Lime & Clay Slurries
  • Mineral & Ore Processing

Salient Features

  • High Quality
  • Better Efficiency
  • Heavy Duty
  • Wide Range
  • Prompt Pre & Post Sales Service
  • Customized Designs
  • Vertical & Horizontal Configuration

ECR & ECRV Pump Range ~ Max. Performance Guid
Pump Size Flow Rate = m3/hour & Head = metres & Speed = rpm

GROUP 1 PUMPS
2x2-10 Maximum     Maximum
  Flow / Head = 45/30 Speed = 1800
GROUP 2 PUMPS
3x3-10 Maximum   75/35 Maximum   1800
3x3-10C Flow / Head = 75/40 Speed = 2000
GROUP 3 PUMPS
5x4-14C     190/45     1500
5x5-14 Maximum   270/35 Maximum   1400
6x6-15 Flow / Head = 360/35 Speed = 1300
GROUP 4 PUMPS
6x8-18C Maximum   360/45 Maximum   1200
10x8-21C Flow / Head = 720/45 Speed = 1000
GROUP 5 PUMPS
12x10-25C Maximum     Maximum
  Flow / Head = 1400/45 Speed = 900
